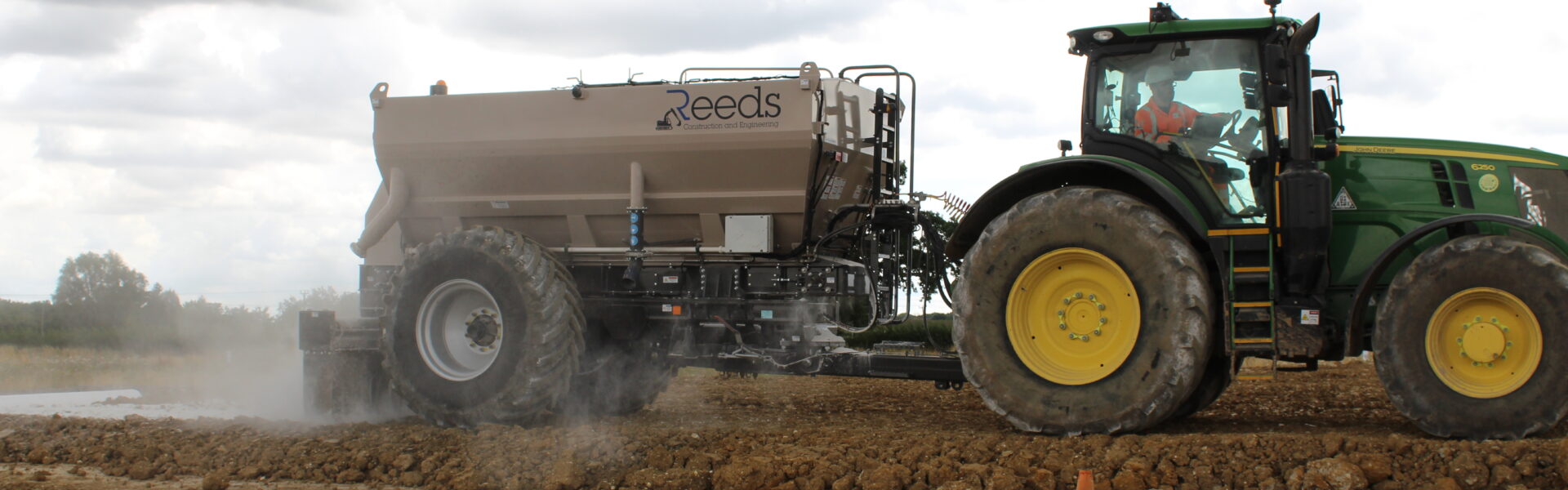

Spread-Tec TBA 10

Spread-Tec’s Trailed Binding Auger Spreaders are designed for precision performance in soil stabilisation applications. Substantial construction with precision spread accuracy technology.

Hydraulically driven and controlled twin chain and slat floor, a 2.5 mtr application width auger with an oil requirement of 90 ltrs/min, with spreading rates from 2 to 50 kg/m2

Available in 10m3 to 16m3 single axle, tandem axle or truck/self-propelled mounted units

Standard

  • Standard

Optional

  • Air/Hydraulic Brakes
  • Strobe Beacons x 2 Rear
  • Working Lights x 2 Rear
  • Mudguards Plastic or Steel
  • Spoon Hitch
  • Toolbox
  • Weigh Cells & Monitor
  • Automatic Rate Control
  • Wheel Options

TBA Series Brochure Flyer Oct22 Final Web and Email

Click image to enlarge

Model TBA-10
(A) Overall Length (mm) 6,647
(B) Overall Height (mm) 3,286
(C) Loading Height (mm) 3,120
(D) Rear Overhang (mm) 742
(E) Bin Length (mm) 4,231
(F) Bin Height (mm) 1,575
(G) Overall Width (mm) 2,899
(H) Loading Width (mm) 2,240
Volume – Level Fill (m3) 10.0
Max Carrying Capacity (mT) 12
Max Carrying Capacity (Kg) 12,000
Unladen Weight (Kg) 5,350
Min Tractor HP Requirement 160HP
Wheels (Standard Spec) 800/65R32 BKT AMAX RT600 181A8
Axle Beam Size (mm) 150
Wheel Track Centres (mm) 2,024
Axle Stud Qty 10 Stud
Brake Type Hydraulic
Brake Hub Size (mm) 420 x 180mm

Spread-Tec TBA 10 Video
