Hydraulic Drive Combi

Designed as a multi-purpose spreader for spreading sand on the following:

  • Sports grounds
  • Golf clubs
  • Race Tracks

With the ability to spread a range of products, the Combi-Spread has been developed to repair divots on horse racing tracks.

A simple bolt on attachment allows the operators to control the feed of material to the rear deck where several operators can collect the material (A mixture of sand, peat and soil mix) and place it into divots on the race track while on the move. This simple attachment has reduced the labor cost for divot repair by over 40%

Combi-Spread is available in a range of sizes from 3 ton to 10 Ton models

PTO pump kit options are also available for compact tractors with low oil flow capacities. See PTO Combi Option





Standard

  • LED Lights
  • Tachometer to display spinner speed on both spinners
  • Hydraulic drive spinners
  • Standard disks for Lime and Fertilizer (Wide spread disks from 18 – 36m optional)
  • Cleated Belt (Slick Belt available)
  • Spinner Speed control valve for complete spinner speed control
  • Stainless Spreading Deck
  • Roll over Cover
  • Inspection Window
  • 3 speed Land drive gearbox (controls rate proportional to forward speed)
  • Inspection Ladder
  • Mesh grids
  • Swivel Hitch
  • Manual Headland Control
  • Pedestrian guard.

Optional

  • Air brakes or Air hydraulic Brakes

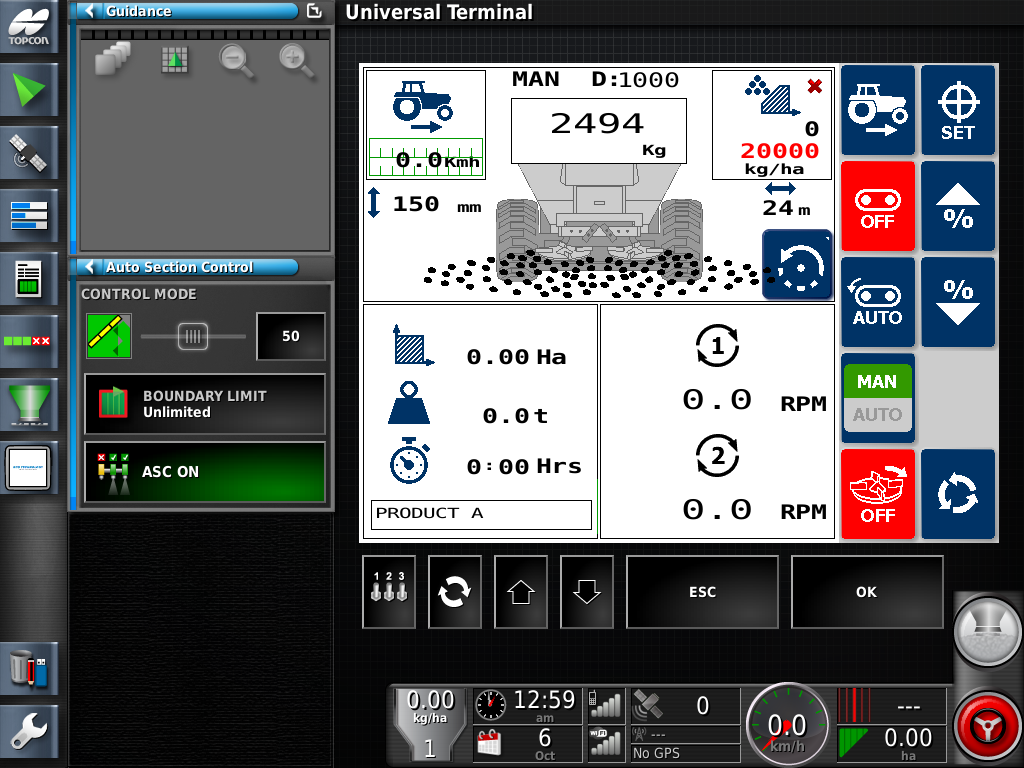

  • Computerised rate control Application. (see computer section of site)
  • Commercial axle. (Standard on AS85 and up)
  • Demountable crane.
  • In cab headland control.
  • Load cells.
  • Salt discs for road use.
  • Stainless steel hopper.
  • Sprung draw bar.
  • Independent hydraulic system for tractors with a low oil output.
  • Customised Ramp fill body options

Hydraulic Drive Combi Video
